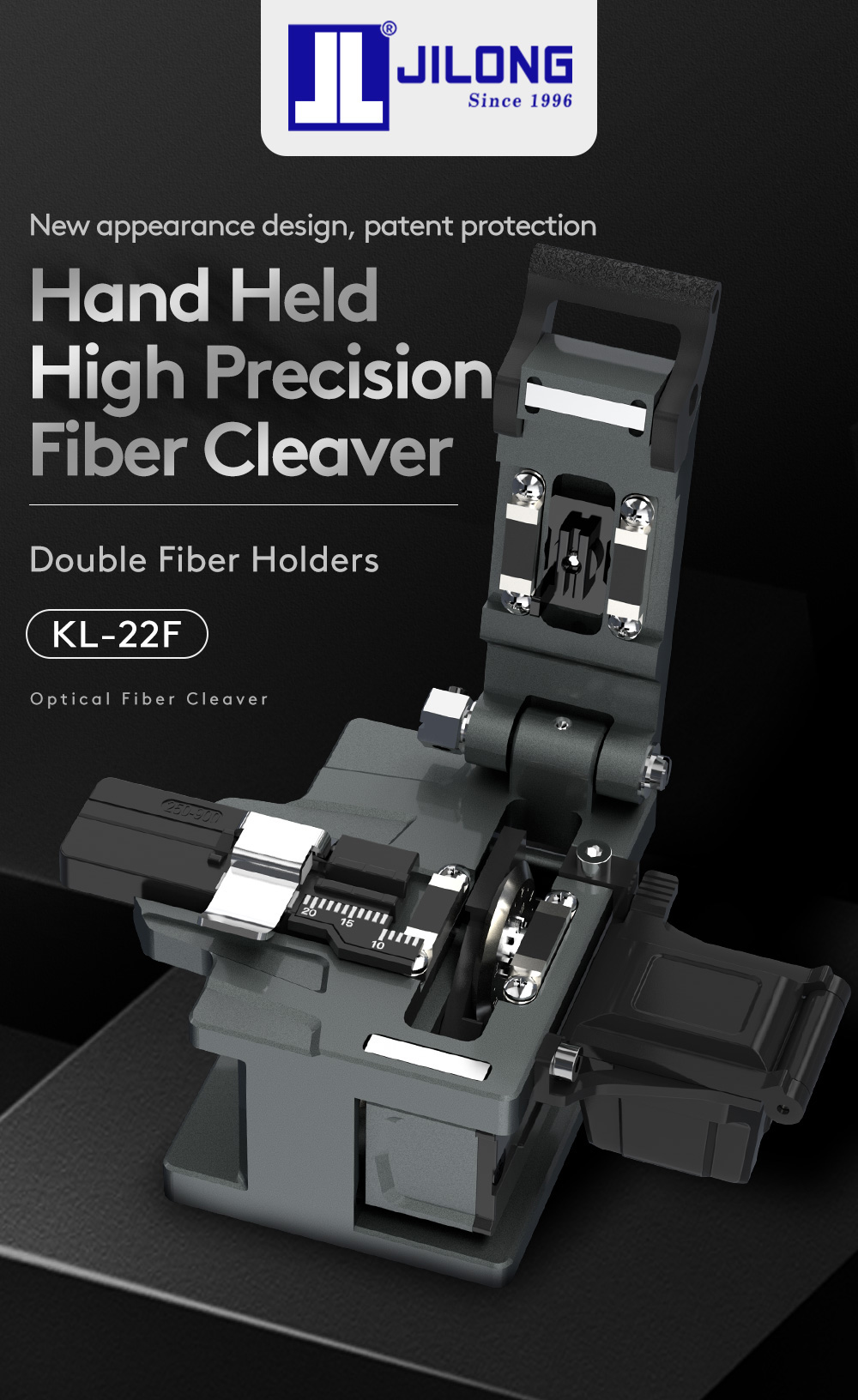

KL-22F Hand Held High Precision Fiber Cleaver
Categoría: Ferramentas de fibra ótica
Características do produto Hand held design, Small, compact size and light weight
Hand held design, Small, compact size and light weight

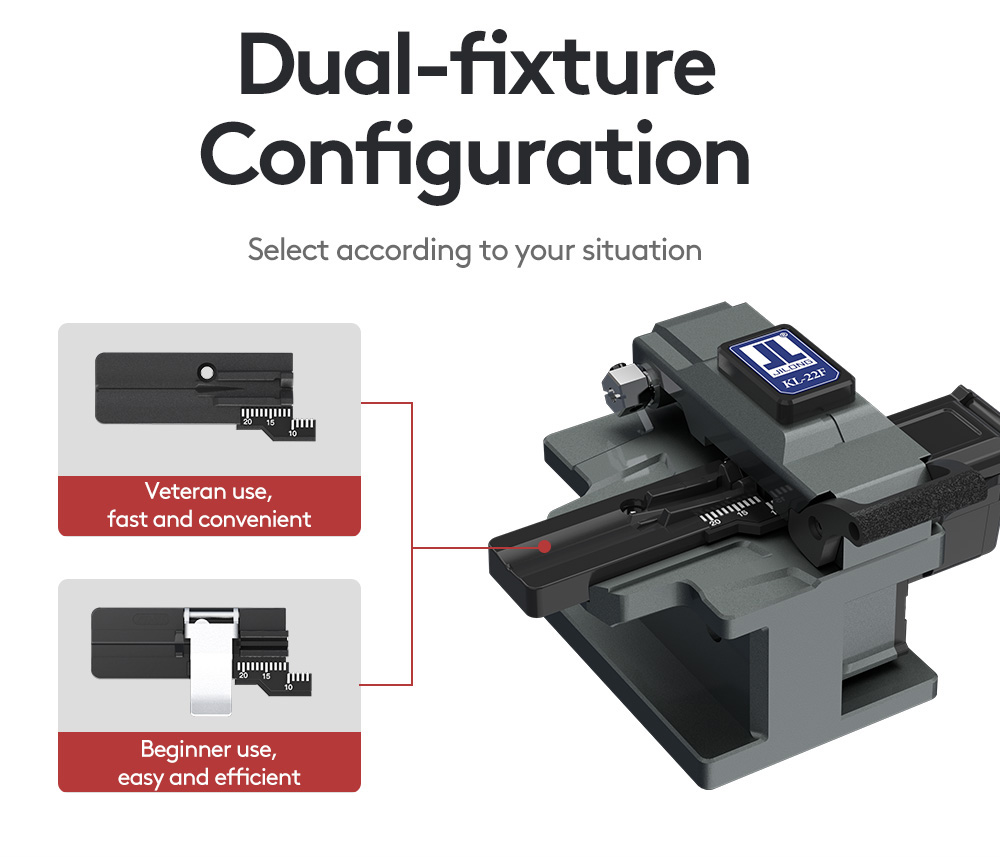

Double Fiber Holders

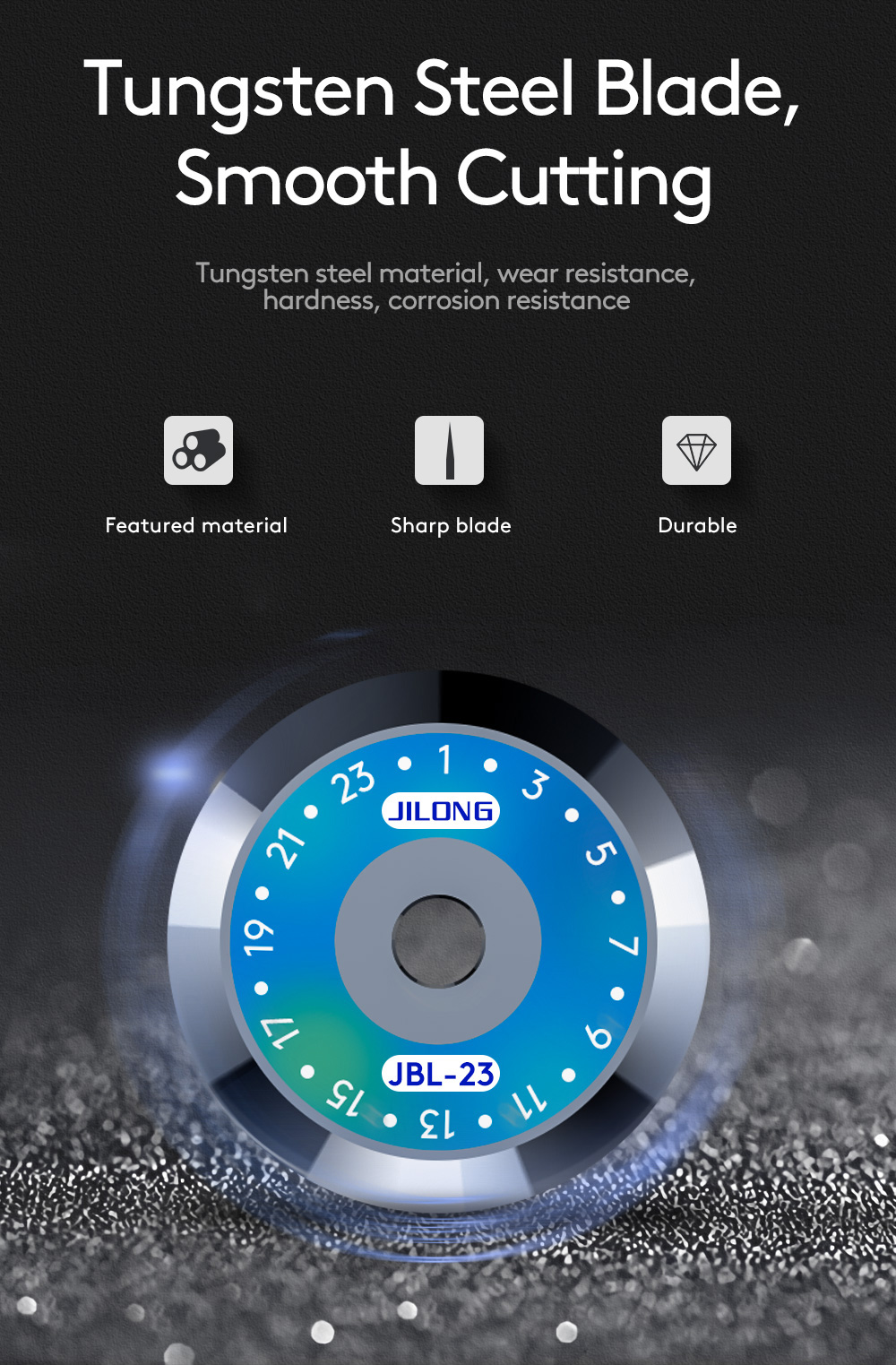

Blade life 48,000 cleaves
Typical Cleave Angel 0.5°

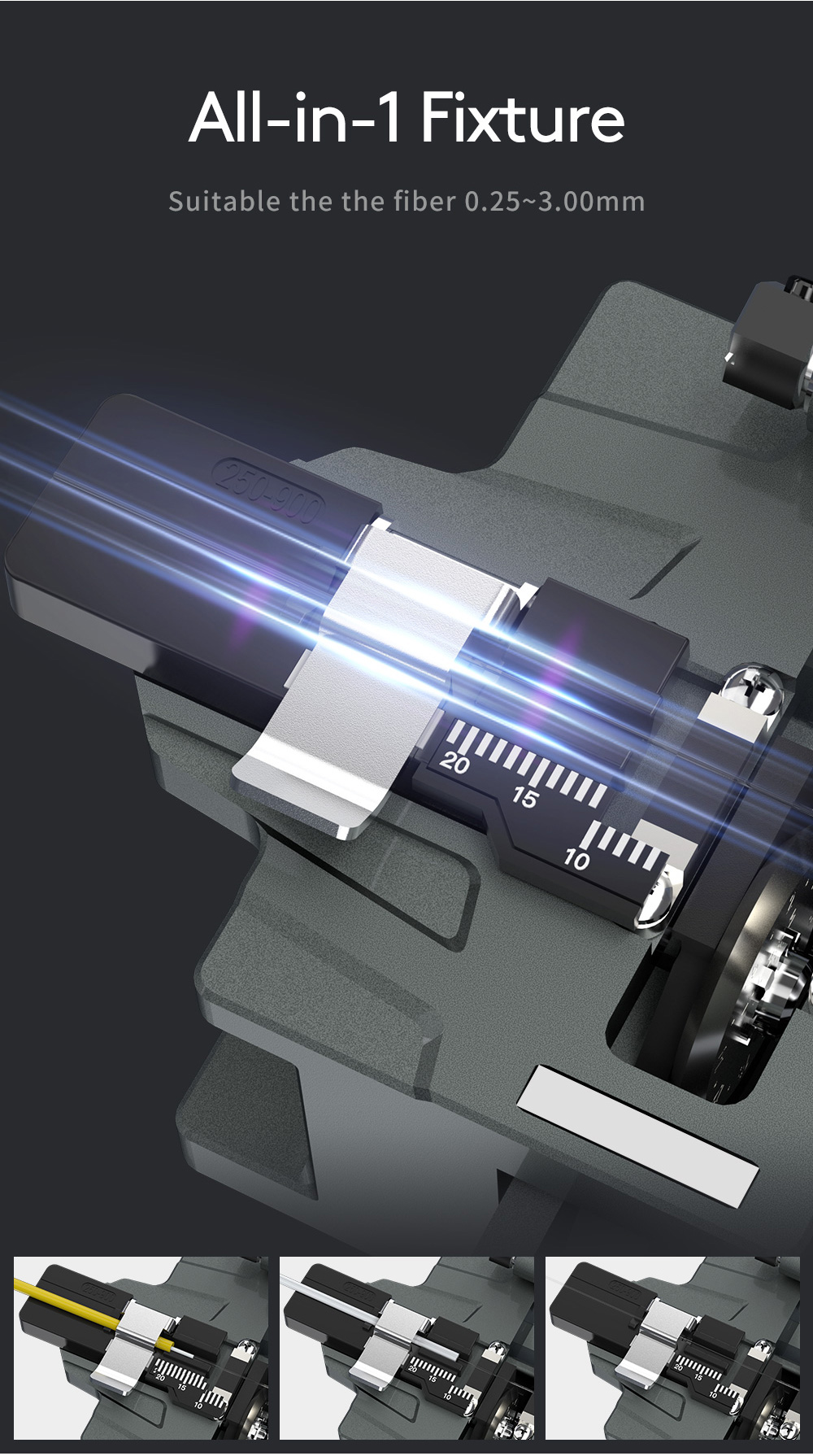

Applicable to 250μm, 900μm, 3.0mm fiber cable and flat cable
Detalhes do produto
Descrição do produto
Parâmetro do produto
| Fiber Meterial | Silica glass |
| Cladding Diameter | 125μm |
| Cleaved Length | Single fiber: 8~20mm / Ribbon fiber: 10mm |
| Applicable Fiber Cable | Single fiber: 250μm, 900μm, 3.0mm fiber cable and flat cable Ribbon fiber: 2 to 12 ribbon fiber cable |

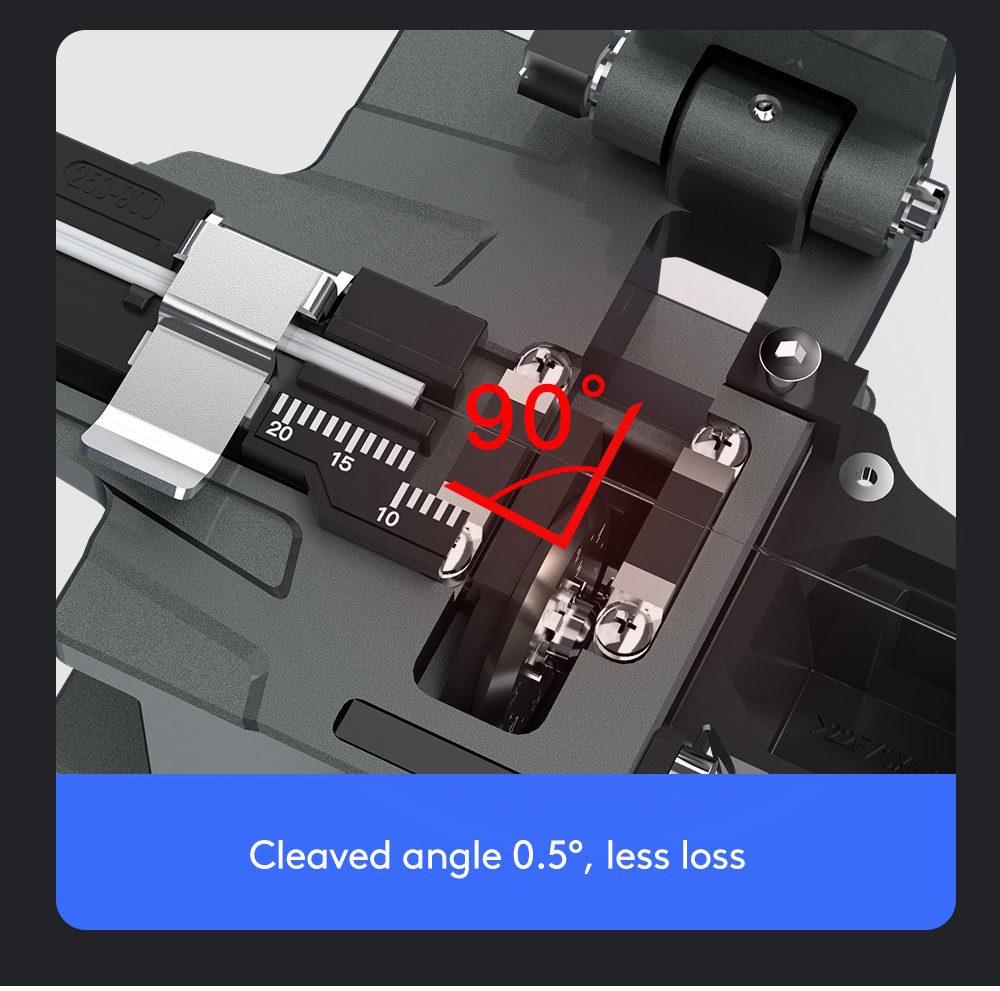

| Typical Cleaved Angle | Less than 0.5° ★① |

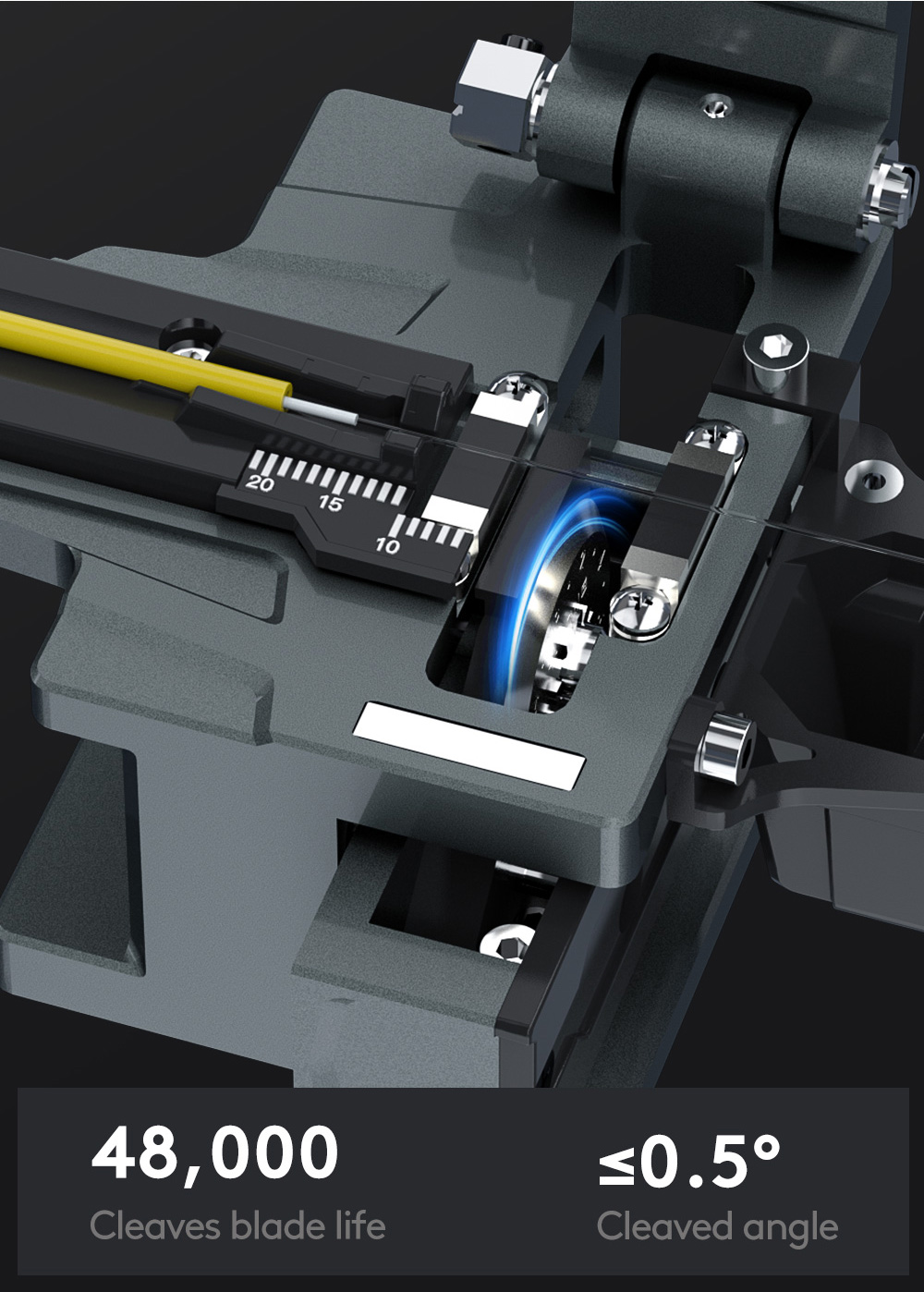

| Typical Blade Life | Total 48,000 fiber cleaves (replaceable) ★② |
| Off-cut Collector | Pre-fitted |
| Type of Offcut Bin | Manual |

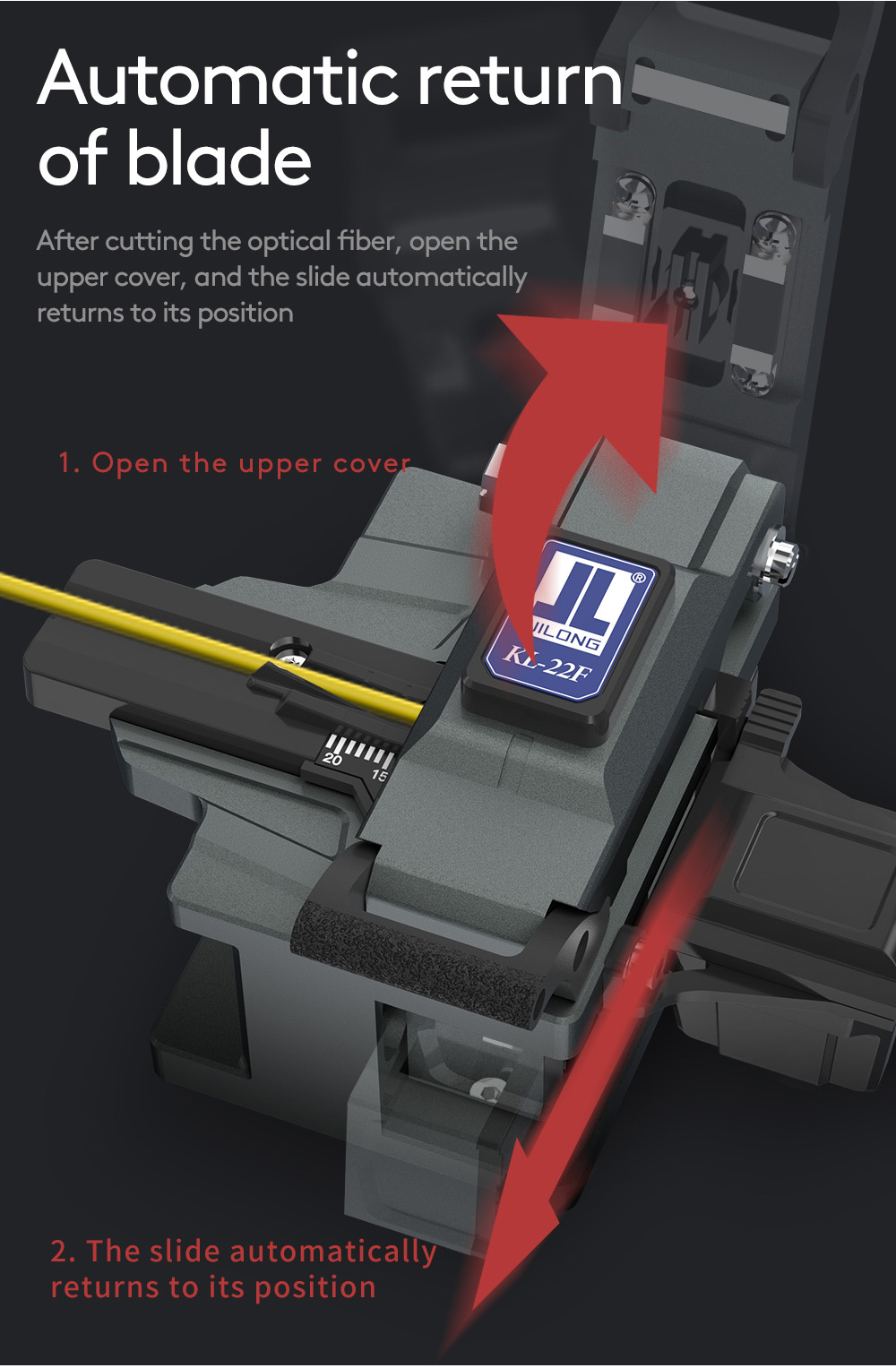

| Auto Return | Pre-fitted |
| Dimension | 55W *55D*50H(mm) |
| Weight | 235g |
★① Cleaved angel may vary depending on the operating environment.
★② Blade life is not guaranteed. It may vary depending on the operating environment.
| QTY | CATEGORY |
| 1 | High Precision Fiber Cleaver KL-22F |
| 1 | Fiber Holder Type 1 |
| 1 | Fiber Holder Type 1 |

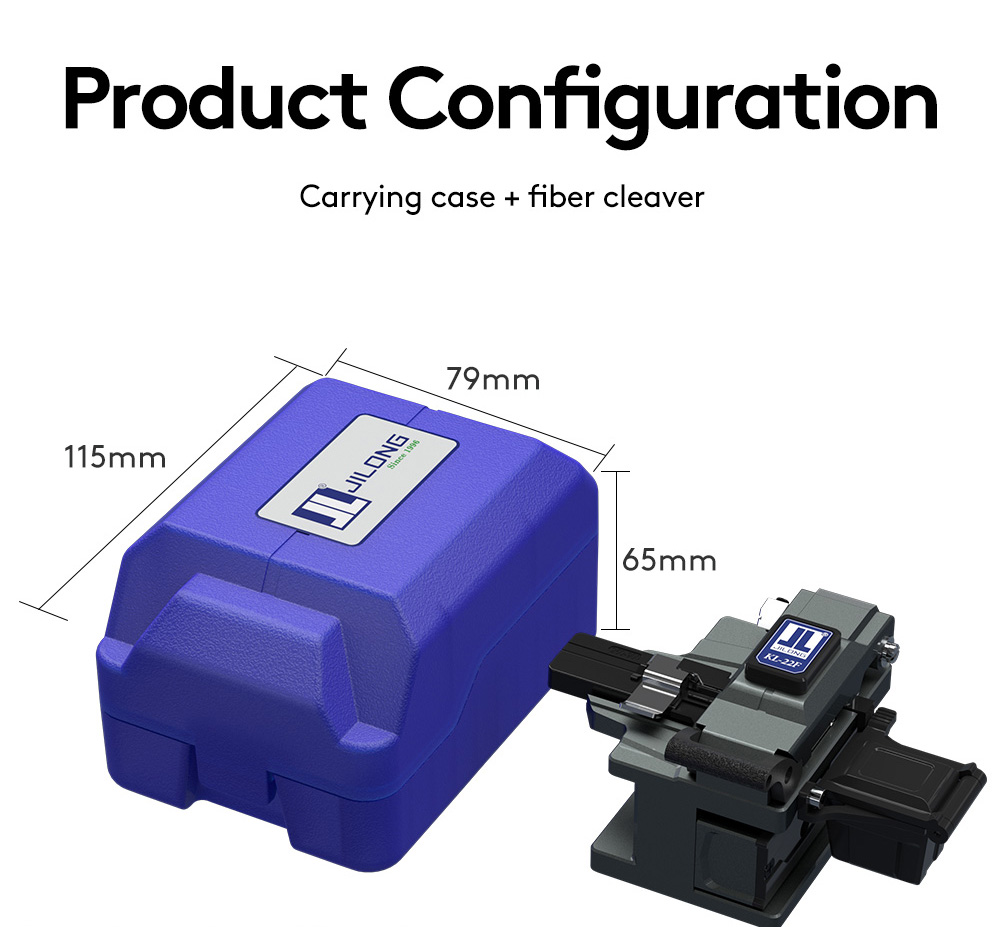

| 1 | Carry Case |
| 1 | Quick Reference Guide |
